Perf是Linux内核自带的调试工具，在分析Linux系统的性能的时候，需要用到这个工具。下面从编译和基本使用的角度来了解perf

一：基本环境

1.1 安装包

apt install binutils elfutils libasm1 zlib1g

1.2 内核工程

git clone http://10.3.4.182/arm-embedded/stable-4.4.194-rk3399-linux.git  （这里只要是你板子上匹配的内核即可）

1.3 火焰图

git clone  https://github.com/brendangregg/FlameGraph.git

1.4 编译

cd tools/perf/ && ARCH=arm64 WERROR=0 NO_LIBPERL=1 NO_LIBPYTHON=1 make -f Makefile.perf perf

perf建议在arm上编译,交叉编译容易出问题

二：基本使用

2.1 用户使用perf的权限

echo -1 > /proc/sys/kernel/perf_event_paranoid

2.2 去掉内核指针打印保护

echo 0 > /proc/sys/kernel/kptr_restrict

2.3 查看版本

kylin@kylin:~$ ./perf -v
perf version 4.4.194.g9ca7d7

2.4 实时分析

./perf top -d 2 -p 528

2.5 支持的事件

./perf list

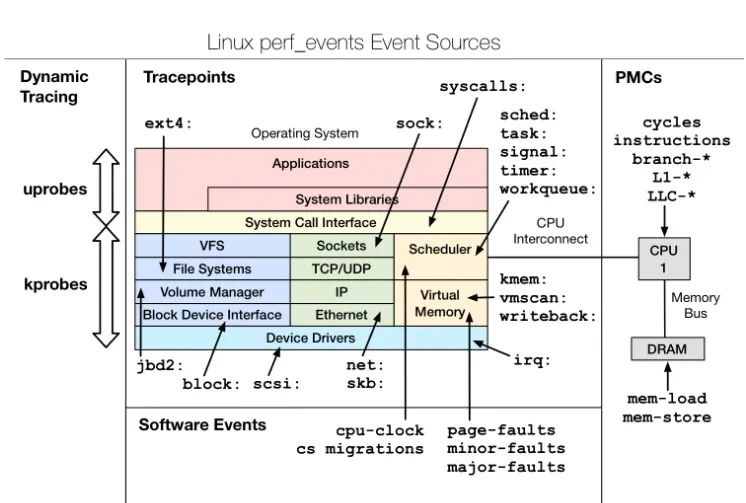

2.5.1 关于事件类型的解释

Hardware [Cache] Events:
  These instrument low-level processor activity based on CPU performance counters.
  For example, CPU cycles, instructions retired, memory stall cycles, level 2 cache misses, etc.
  Some will be listed as Hardware Cache Events.

Software Events:
  These are low level events based on kernel counters.
  For example, CPU migrations, minor faults, major faults, etc.

Tracepoint Events:
  This are kernel-level events based on the ftrace framework. These tracepoints are placed in interesting and logical locations of the kernel, so that higher-level behavior can be easily traced.
  For example, system calls, TCP events, file system I/O, disk I/O, etc.
  These are grouped into libraries of tracepoints;
    eg, "sock:" for socket events, "sched:" for CPU scheduler events.

Dynamic Tracing:
  Software can be dynamically instrumented, creating events in any location.
  For kernel software, this uses the kprobes framework.
  For user-level software, uprobes.

Timed Profiling:
  Snapshots can be collected at an arbitrary frequency, using perf record -FHz.
  This is commonly used for CPU usage profiling, and works by creating custom timed interrupt events.

2.6 统计信息

./perf stat -p 528

2.7 收集perf数据

./perf record -g -p 528 -o perf.data

2.8 分析perf数据

./perf report -i perf.data

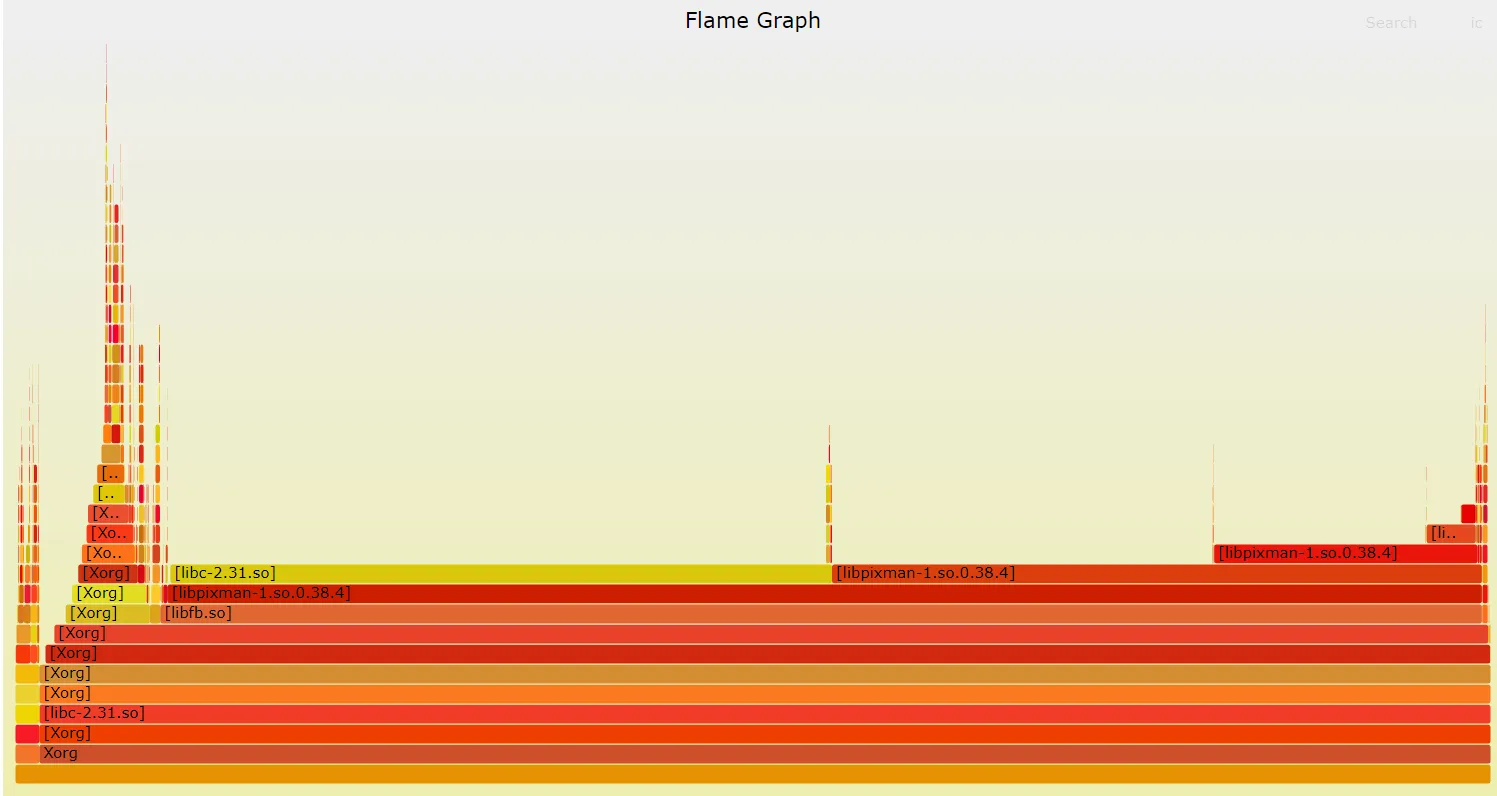

2.9 火焰图

./perf script -i perf.data | FlameGraph/stackcollapse-perf.pl | FlameGraph/flamegraph.pl > flame.html

2.10 简单分析

perf record -a -g -p 1
perf report -g --tui
