根据vDSO--什么是vDSO的实验，我们知道了啥是vDSO，本文基于内核的实现，简单介绍一下vDSO的内核原理。

一、vdso的初始化

在代码arch/arm64/kernel/vdso.c中，我们可以看到vdso的初始化如下：


static struct vm_special_mapping aarch64_vdso_maps[] __ro_after_init = {
        [AA64_MAP_VVAR] = {
                .name   = "[vvar]",
                .fault = vvar_fault,
                .mremap = vvar_mremap,
        },
        [AA64_MAP_VDSO] = {
                .name   = "[vdso]",
                .mremap = vdso_mremap,
        },
};

static int __init vdso_init(void)
{
        vdso_info[VDSO_ABI_AA64].dm = &aarch64_vdso_maps[AA64_MAP_VVAR];
        vdso_info[VDSO_ABI_AA64].cm = &aarch64_vdso_maps[AA64_MAP_VDSO];

        return __vdso_init(VDSO_ABI_AA64);
}
arch_initcall(vdso_init);

可以看到vdso默认通过arch_initcall拉起来，然后，默认初始化了两个特殊页映射的结构体aarch64_vdso_maps，我们关注__vdso_init如下


static int __vdso_init(enum vdso_abi abi)
{
        int i;
        struct page **vdso_pagelist;
        unsigned long pfn;

        if (memcmp(vdso_info[abi].vdso_code_start, "\177ELF", 4)) {
                pr_err("vDSO is not a valid ELF object!\n");
                return -EINVAL;
        }

        vdso_info[abi].vdso_pages = (
                        vdso_info[abi].vdso_code_end -
                        vdso_info[abi].vdso_code_start) >>
                        PAGE_SHIFT;

        vdso_pagelist = kcalloc(vdso_info[abi].vdso_pages,
                                sizeof(struct page *),
                                GFP_KERNEL);
        if (vdso_pagelist == NULL)
                return -ENOMEM;

        /* Grab the vDSO code pages. */
        pfn = sym_to_pfn(vdso_info[abi].vdso_code_start);

        for (i = 0; i < vdso_info[abi].vdso_pages; i++)
                vdso_pagelist[i] = pfn_to_page(pfn + i);

        vdso_info[abi].cm->pages = vdso_pagelist;

        return 0;
}

这里看到计算了vdso的代码所需页数，然后为其kcalloc申请了页，然后通过页地址找到页帧号，然后再找到物理的页地址。

这里我们完成了vdso的整个初始化过程

二、vdso插入用户内存空间

首先我们留意到一个函数：


arch_setup_additional_pages

此时我们关注fs/binfmt_elf.c的如下函数


static int load_elf_binary(struct linux_binprm *bprm)

它有如下代码：


#ifdef ARCH_HAS_SETUP_ADDITIONAL_PAGES
 retval = arch_setup_additional_pages(bprm, !!interpreter);
 if (retval < 0)
 goto out;
#endif /* ARCH_HAS_SETUP_ADDITIONAL_PAGES */

这里就清楚了，当我们执行一个elf文件的时候，或通过load_elf_binary来解析elf，在这个过程中，我们调用arch_setup_additional_pages将其安插在用户的内存空间布局中。

主要操作如下：


ret = _install_special_mapping(mm, vdso_base, VVAR_NR_PAGES * PAGE_SIZE,
 VM_READ|VM_MAYREAD|VM_PFNMAP,
 vdso_info[abi].dm);
ret = _install_special_mapping(mm, vdso_base, vdso_text_len,
 VM_READ|VM_EXEC|gp_flags|
 VM_MAYREAD|VM_MAYWRITE|VM_MAYEXEC,
 vdso_info[abi].cm);

这里和进程maps对应上了，如下：


7f93766000-7f93768000 r--p 00000000 00:00 0 [vvar]
7f93768000-7f93769000 r-xp 00000000 00:00 0 [vdso]

三、程序使用vdso

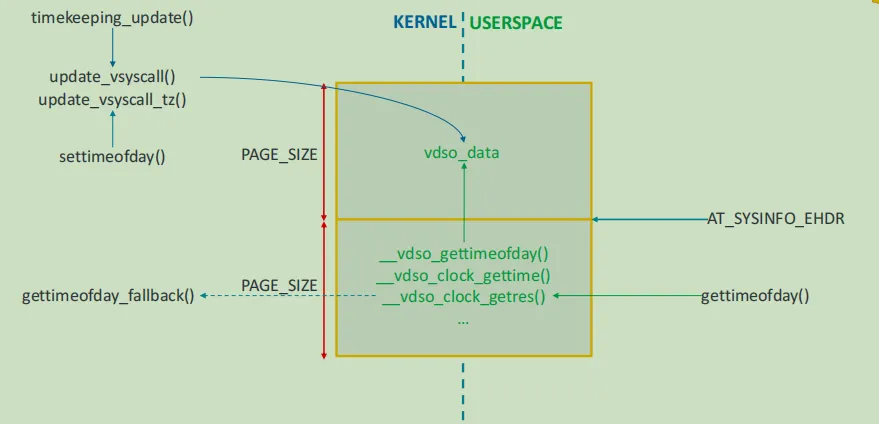

根据上面的信息，我们知道了vdso的初始化，vdso在elf加载的时候默认map到程序内存空间，但是具体的，我们需要知道vdso如何优化syscall的调用的，首先，我们得知道如下图：

这里以gettimeofday为例，我们需要先关注链接脚本文件vdso.lds.S


SECTIONS
{
        PROVIDE(_vdso_data = . - __VVAR_PAGES * PAGE_SIZE);
#ifdef CONFIG_TIME_NS
        PROVIDE(_timens_data = _vdso_data + PAGE_SIZE);
#endif
        . = VDSO_LBASE + SIZEOF_HEADERS;

        .hash           : { *(.hash) }                  :text
        .gnu.hash       : { *(.gnu.hash) }
        .dynsym         : { *(.dynsym) }
        .dynstr         : { *(.dynstr) }
        .gnu.version    : { *(.gnu.version) }
        .gnu.version_d  : { *(.gnu.version_d) }
        .gnu.version_r  : { *(.gnu.version_r) }

        /*
         * Discard .note.gnu.property sections which are unused and have
         * different alignment requirement from vDSO note sections.
         */
        /DISCARD/       : {
                *(.note.GNU-stack .note.gnu.property)
        }
        .note           : { *(.note.*) }                :text   :note

        . = ALIGN(16);

        .text           : { *(.text*) }                 :text   =0xd503201f
        PROVIDE (__etext = .);
        PROVIDE (_etext = .);
        PROVIDE (etext = .);

        .eh_frame_hdr   : { *(.eh_frame_hdr) }          :text   :eh_frame_hdr
        .eh_frame       : { KEEP (*(.eh_frame)) }       :text

        .dynamic        : { *(.dynamic) }               :text   :dynamic

        .rodata         : { *(.rodata*) }               :text

        _end = .;
        PROVIDE(end = .);

        /DISCARD/       : {
                *(.data .data.* .gnu.linkonce.d.* .sdata*)
                *(.bss .sbss .dynbss .dynsbss)
        }
}

此时我们查看导出符号


VERSION
{
        LINUX_2.6.39 {
        global:
                __kernel_rt_sigreturn;
                __kernel_gettimeofday;
                __kernel_clock_gettime;
                __kernel_clock_getres;
        local: *;
        };
}

这里我们知道，用户想要调用gettimeofday，实际上vdso是调用实现的__kernel_gettimeofday，我们追踪此程序的实现：


arch/arm64/kernel/vdso/vgettimeofday.c

int __kernel_gettimeofday(struct __kernel_old_timeval *tv, struct timezone *tz) { return __cvdso_gettimeofday(tv, tz); }


然后我们找到`__cvdso_gettimeofday`的实现在：

lib/vdso/gettimeofday.c


static __maybe_unused int
__cvdso_gettimeofday_data(const struct vdso_data *vd,
                          struct __kernel_old_timeval *tv, struct timezone *tz)
{

        if (likely(tv != NULL)) {
                struct __kernel_timespec ts;

                if (do_hres(&vd[CS_HRES_COARSE], CLOCK_REALTIME, &ts))
                        return gettimeofday_fallback(tv, tz);

                tv->tv_sec = ts.tv_sec;
                tv->tv_usec = (u32)ts.tv_nsec / NSEC_PER_USEC;
        }

        if (unlikely(tz != NULL)) {
                if (IS_ENABLED(CONFIG_TIME_NS) &&
                    vd->clock_mode == VDSO_CLOCKMODE_TIMENS)
                        vd = __arch_get_timens_vdso_data();

                tz->tz_minuteswest = vd[CS_HRES_COARSE].tz_minuteswest;
                tz->tz_dsttime = vd[CS_HRES_COARSE].tz_dsttime;
        }

        return 0;
}

static __maybe_unused int
__cvdso_gettimeofday(struct __kernel_old_timeval *tv, struct timezone *tz)
{
        return __cvdso_gettimeofday_data(__arch_get_vdso_data(), tv, tz);
}

这里我们关注函数do_hres，其实现如下：


路径：lib/vdso/gettimeofday.c


ts->tv_sec = sec + __iter_div_u64_rem(ns, NSEC_PER_SEC, &ns);
ts->tv_nsec = ns;

这里直接给ts赋值即可，如果vdso的实现失效，则切回syscall，如下：


arch/arm64/include/asm/vdso/gettimeofday.h


static __always_inline
int gettimeofday_fallback(struct __kernel_old_timeval *_tv,
                          struct timezone *_tz)
{
        register struct timezone *tz asm("x1") = _tz;
        register struct __kernel_old_timeval *tv asm("x0") = _tv;
        register long ret asm ("x0");
        register long nr asm("x8") = __NR_gettimeofday;

        asm volatile(
        "       svc #0\n"
        : "=r" (ret)
        : "r" (tv), "r" (tz), "r" (nr)
        : "memory");

        return ret;
}

这里就存在一个疑问点，我们直接赋值的数据从哪里来。

3.1 vdso的数据vvar

我们已经知道了代码通过vdso下发到直接去数据，我们稍微留意一下就知道这个数据是


__cvdso_gettimeofday_data(__arch_get_vdso_data(), tv, tz);

也就是


static __always_inline
const struct vdso_data *__arch_get_vdso_data(void)
{
 return _vdso_data;
}

也就是


/*
 * The vDSO data page.
 */
static union {
 struct vdso_data data[CS_BASES];
 u8 page[PAGE_SIZE];
} vdso_data_store __page_aligned_data;
struct vdso_data *vdso_data = vdso_data_store.data;

这里可以知道了，这个数据来源vvar里面，但是数据如何更新的呢

3.2 vvar的数据更新

对于gettimeofday的函数的实现，我们需要关注timer的核心函数timekeeping_update，代码位置如下：


kernel/time/timekeeping.c

我们关心这句话


update_vsyscall(tk);

其实现在如下：


void update_vsyscall(struct timekeeper *tk)
{
        struct vdso_data *vdata = __arch_get_k_vdso_data();
        struct vdso_timestamp *vdso_ts;
        s32 clock_mode;
        u64 nsec;

        /* copy vsyscall data */
        vdso_write_begin(vdata);

        clock_mode = tk->tkr_mono.clock->vdso_clock_mode;
        vdata[CS_HRES_COARSE].clock_mode        = clock_mode;
        vdata[CS_RAW].clock_mode                = clock_mode;

        /* CLOCK_REALTIME also required for time() */
        vdso_ts         = &vdata[CS_HRES_COARSE].basetime[CLOCK_REALTIME];
        vdso_ts->sec    = tk->xtime_sec;
        vdso_ts->nsec   = tk->tkr_mono.xtime_nsec;

        /* CLOCK_REALTIME_COARSE */
        vdso_ts         = &vdata[CS_HRES_COARSE].basetime[CLOCK_REALTIME_COARSE];
        vdso_ts->sec    = tk->xtime_sec;
        vdso_ts->nsec   = tk->tkr_mono.xtime_nsec >> tk->tkr_mono.shift;

        /* CLOCK_MONOTONIC_COARSE */
        vdso_ts         = &vdata[CS_HRES_COARSE].basetime[CLOCK_MONOTONIC_COARSE];
        vdso_ts->sec    = tk->xtime_sec + tk->wall_to_monotonic.tv_sec;
        nsec            = tk->tkr_mono.xtime_nsec >> tk->tkr_mono.shift;
        nsec            = nsec + tk->wall_to_monotonic.tv_nsec;
        vdso_ts->sec    += __iter_div_u64_rem(nsec, NSEC_PER_SEC, &vdso_ts->nsec);

        /*
         * Read without the seqlock held by clock_getres().
         * Note: No need to have a second copy.
         */
        WRITE_ONCE(vdata[CS_HRES_COARSE].hrtimer_res, hrtimer_resolution);

        /*
         * If the current clocksource is not VDSO capable, then spare the
         * update of the high reolution parts.
         */
        if (clock_mode != VDSO_CLOCKMODE_NONE)
                update_vdso_data(vdata, tk);

        __arch_update_vsyscall(vdata, tk);

        vdso_write_end(vdata);

        __arch_sync_vdso_data(vdata);
}

这里一目了然vdso_ts就是vdata的成员，结构体如下：


struct vdso_data {
 u32 seq;
s32 clock_mode;
 u64 cycle_last;
 u64 mask;
 u32 mult;
 u32 shift;
union {
 struct vdso_timestamp basetime[VDSO_BASES];
 struct timens_offset offset[VDSO_BASES];
 };
s32 tz_minuteswest;
 s32 tz_dsttime;
 u32 hrtimer_res;
 u32 __unused;
struct arch_vdso_data arch_data;
};

所以数据存放在vvar区域，我们定义了一个数据结构，在内核中，我们直接利用vvar区域的数据赋值给vdso的代码调用，也就避免了系统调用。
